Airbus A380 Thrust Reverser Design Prioritises Efficiency, Safety

Unique Design for the Superjumbo

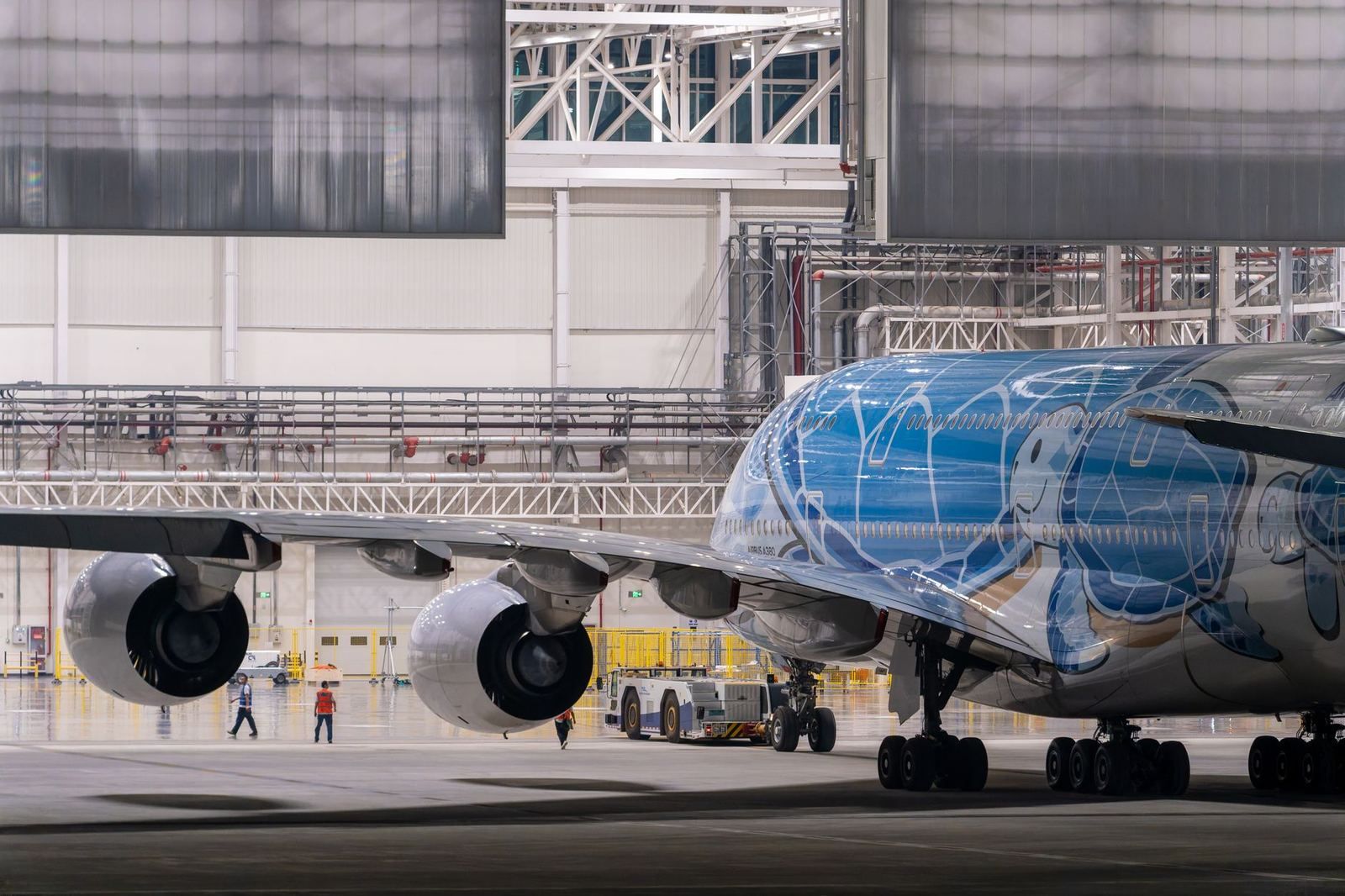

The Airbus A380, known as the world’s largest passenger aircraft, features a distinctive thrust reverser configuration. Despite its four powerful engines, only the two inboard units, specifically engines numbers two and three, incorporate this system. Unlike many other four-engine airliners, the A380’s outer engines do not produce reverse thrust upon landing.

Airbus implemented this design choice following extensive aerodynamic, structural, and operational analysis. This approach departs from conventions seen on aircraft like the Boeing 747, which typically equips all four engines with thrust reversers.

The decision was not a compromise but a carefully engineered solution aimed at improving both efficiency and operational reliability for the A380.

Mitigating Foreign Object Damage Risks

A primary reason for limiting thrust reversers to the inboard engines relates to the A380’s immense wingspan, measuring 79.75 metres. This size positions the outboard engines significantly closer to runway edges compared to smaller aircraft. Even on Code F airports, designed for such large aircraft with 60-metre-wide runways, the outer engines sit near the pavement’s margin.

At airports upgraded from Code E standards, which feature 45-metre runways, these engines can be mere metres from unpaved surfaces. Operating thrust reversers in such proximity to grass, gravel, or other debris would greatly increase the risk of Foreign Object Damage (FOD) to the engines, wings, and fuselage. Airbus’s design minimises this operational hazard.

Weight Reduction and Maintenance Benefits

Beyond FOD prevention, Airbus’s decision also addresses aircraft weight and maintenance requirements. Each thrust reverser adds substantial weight and structural complexity to the aircraft. Omitting two reversers reduces the overall mass of the aircraft and lessens the structural loads on the wing.

This reduction translates into lower fuel consumption and potentially extended airframe life. Furthermore, fewer thrust reversers mean reduced maintenance demands, simplifying servicing schedules and lowering operational costs for airlines.

This engineering choice demonstrates a strategic focus on long-term efficiency and reduced operational expenditure, which benefits carriers flying the superjumbo globally.

Supplementary Braking Performance

Many passengers often perceive reverse thrust as the primary method for stopping an aircraft after touchdown. However, airliners primarily rely on wheel brakes, aerodynamic spoilers, and sophisticated anti-skid systems for deceleration. The A380 is certified to land safely using only its brakes and spoilers.

Reverse thrust serves a supplementary role, primarily providing additional braking force on wet or slippery runways. This function helps reduce the risk of aquaplaning and minimises wear on the main braking system.

The two inboard reversers provide almost all the necessary operational benefit for these conditions, making additional units on the outboard engines redundant for primary stopping power.

Implications for Aircraft Design and Operations

The Airbus A380’s thrust reverser configuration exemplifies a design philosophy that prioritises operational efficiency and safety through considered engineering. By integrating solutions that address specific challenges posed by the aircraft’s size, Airbus demonstrates a commitment to optimising long-term airline operations.

This approach reduces potential maintenance issues, enhances safety margins in diverse runway conditions, and contributes to lower overall operating costs. For aircraft manufacturers, this case reveals the importance of balancing traditional design conventions with innovative solutions tailored to unique aircraft characteristics.

Operators benefit from a design that streamlines maintenance and ensures reliable performance across its global network.
